Double-color Flexography Printing Machine


Product ID:YT
Sort:Printing machine series
Name:YT Series Double-color Flexography Printing Machine

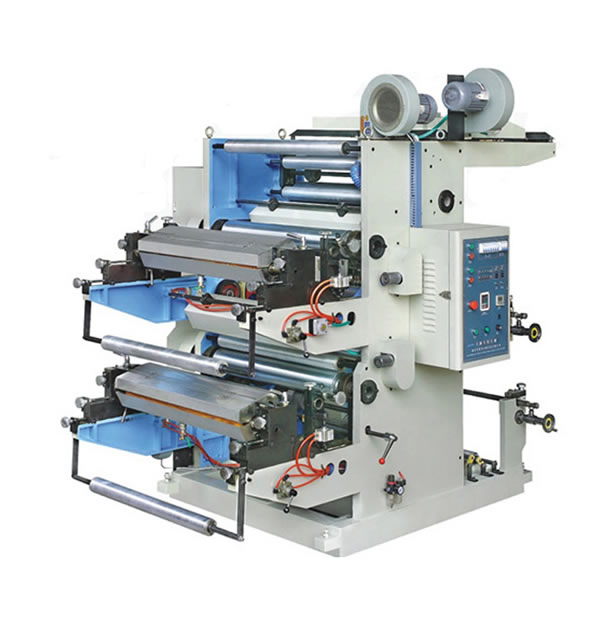

YT Series Double-color Flexography Printing Machine
Application: Introduce sensitization resin as flexible printing plate, suitable for printing
such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,
etc. It is a kind of ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.

Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.




Main Technical   Variables:
Type YT-2600 YT-2800 YT-21000
Max. Web Width 600mm 800mm 1000mm
Max. Effective Printing Width 560mm 760mm 960mm
Range of Repeat Printing Length 191~914mm 191~914mm 191~914mm
Max. Diameter of Roll Material ф450mm ф450mm ф450mm
Printing Speed 5~50m/min 5~50m/min 5~50m/min
Plate Thickness(Both side adhesive tape included) 2.38mm 2.38mm 2.38mm
Total Power 8Kw 10Kw 12Kw
Overall Dimension 2300×1860×2145mm 2300×2060×2145mm 2300×2260×2145mm
